WindRose PRO Help

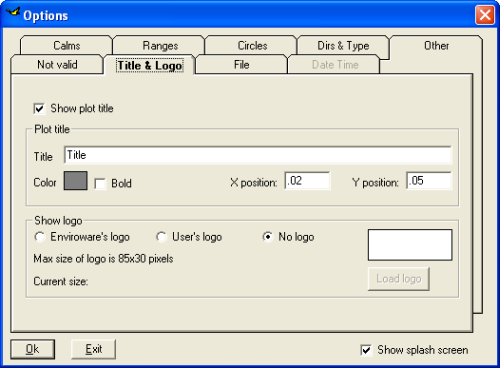

The Title & Logo tab of the Options form allows the user to specify a title for the wind rose plot and its colour. The tiel position is pecified by coordinates between 0 and 1. (0,0) indicates a title placed in the lower left corner, while (1,1) indicates a title placed in the upper right corner.

Moreover it allows to specify if a logo must be shown in the upper left corner of the image. The user have the possibility to show the Enviroware's logo, the logo of her/his Company, or no logo at all. If the user chooses to represent the Company's logo, this logo must be a JPEG image and the maximum size is 85 x 30 pixels. It is loaded using the "Load logo" button and a preview is shown in the rectangle above the button.
